| General information |
|---|

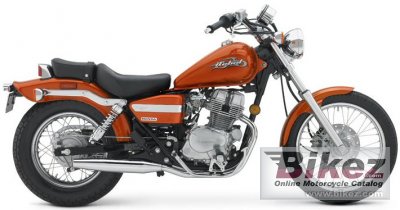

| Model: | Honda CMX 250 Rebel |
| Year: | 2005 |
| Category: | Custom / cruiser |
| Rating: | 72.2 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 2099. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 234.00 ccm (14.28 cubic inches) |
| Engine type: | Twin, four-stroke |
| Compression: | 9.2:1 |
| Bore x stroke: | 53.0 x 53.0 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Single 26mm diaphragm-type CV |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Front Suspension |
| Rake (fork angle): | 32.7° |
| Trail: | 161 mm (6.3 inches) |
| Front suspension: | 33mm fork |
| Front wheel travel: | 117 mm (4.6 inches) |
| Rear suspension: | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel: | 74 mm (2.9 inches) |
| Front tyre: | 90/90-18 |
| Rear tyre: | 130/90-15 |
| Front brakes: | Single disc. 2-piston calipers |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 139.0 kg (306.4 pounds) |
| Seat height: | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,450 mm (57.1 inches) |
| Fuel capacity: | 9.84 litres (2.60 gallons) |
| Other specifications |
|---|
| Color options: | Black, Candy Orange |
| Starter: | Electric |
| Comments: | Model ID: CB250 |
