General information |
Model name
|

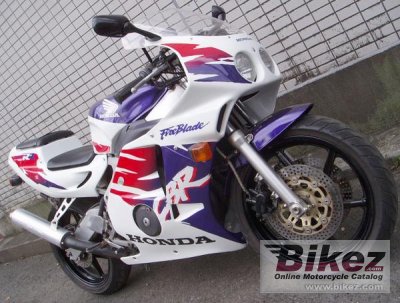

Honda CBR 250 RR |
Year of manufacture
|
1994 |
Type
|
Sport |
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
249.0 ccm (15.19 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Output
|
45.0 HP (32.8 kW)) @ 14500 RPM |
Torque
|
24.0 Nm (2.4 kgf-m or 17.7 ft.lbs) @ 11500 RPM |
Top speed
|
185.0 km/h (115.0 mph) |
0-100 km/h (0-62 mph)
|
4.80 seconds |
Maximum RPM
|
18500 |
Compression
|
11.5:1 |
Bore x stroke
|
48.5 x 33.8 mm (1.9 x 1.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. 4 xm Keihin 29 mm |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet Multiplate |
Chassis, suspension, brakes and wheels |
Frame type
|
Diamond Aluminum |
Rake (fork angle)
|
24.0° |
Trail
|
89 mm (3.5 inches) |
Front wheel travel
|
83 mm (3.3 inches) |
Rear wheel travel
|
76 mm (3.0 inches) |
Front tire
|
110/70-17 |
Rear tire
|
140/60-17 |
Front brakes
|
Double disc. Dual Piston Calipers |
Diameter
|
275 mm (10.8 inches) |
Rear brakes
|
Single disc. Single Piston Caliper |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
158.0 kg (348.3 pounds) |
Power/weight ratio
|
0.2848 HP/kg |
Seat height
|
735 mm (28.9 inches) If adjustable, lowest setting. |
Overall height
|
1080 mm (42.5 inches) |
Overall length
|
1975 mm (77.8 inches) |
Overall width
|
675 mm (26.6 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1345 mm (53.0 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
Other specifications |
Starter
|
Electric |
