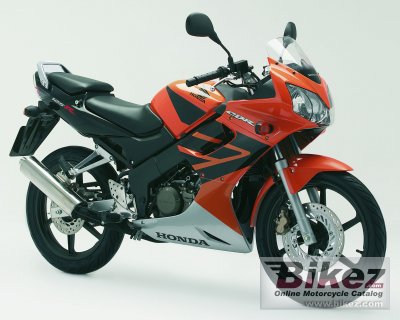

Honda CBR 125 R 20062006 Honda CBR 125 R specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The thrilling CBR125R gives you sleek and sinewy Supersport styling for both the look and feel of swift, light-handling performance that never fails to excite. Your spirits begin to rise the instant you settle into its seat, and don’t come down till long after the day is done. |
| General information | |
|---|---|
| Motorcycle name | Honda CBR 125 R |
| Year of manufacture | 2006 |
| Type | Sport |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.7 ccm (7.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 13.0 HP (9.5 kW)) @ 10000 RPM |
| Torque | 10.1 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 8000 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 58.0 x 47.2 mm (2.3 x 1.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 28mm VK-type |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Capacitor Discharge (CDI) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate with coil springs |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond, steel twin-spar |
| Trail | 88 mm (3.5 inches) |
| Front suspension | 31mm telescopic fork |
| Front wheel travel | 109 mm (4.3 inches) |
| Rear suspension | Monoshock damper |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 80/90-ZR17 |
| Rear tire | 100/80-ZR17 |
| Front brakes | Single disc |
| Diameter | 276 mm (10.9 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 115.0 kg (253.5 pounds) |
| Power/weight ratio | 0.1130 HP/kg |
| Seat height | 776 mm (30.6 inches) If adjustable, lowest setting. |
| Ground clearance | 172 mm (6.8 inches) |
| Wheelbase | 1294 mm (50.9 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Other specifications | |
| Starter | Electric |
