General information |
|
Model
|

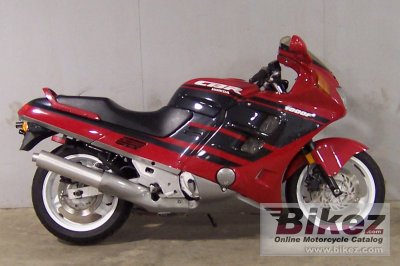

Honda CBR 1000 F |
|
Model year
|
1991 |
|
Category
|
Sport touring |
|
Rating
|
4.0 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
100.0 HP (73.0 kW)) @ 9000 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fokr, air assisted. |
|
Rear suspension
|
Pro-link monoshock, 6-way preload. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
170/60-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
235.0 kg (518.1 pounds) |
|
Weight incl. oil, gas, etc
|
254.0 kg (560.0 pounds) |
|
Power/weight ratio
|
0.4255 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1215 mm (47.8 inches) |
|
Overall length
|
2235 mm (88.0 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Red/white, red/black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
Honda GN4 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Battery
|
YB14L-B2 |
|
Spark plugs
|
NGK DPR9EA-9, NGK DPR9EIX-9 |
|
Idle speed
|
1000 +/- 100 RPM |
|
Chain size
|
530 |
|
Chain links
|
120 |
|
Sprockets
|
17/42 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
