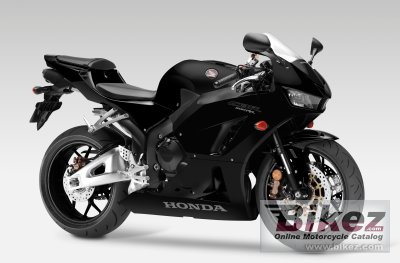

Honda CBR600RR 20132013 Honda CBR600RR specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| For 2013 the best just got a whole lot better. We’ve given the CBR600RR some major updates, including new 12-spoke wheels, revised ECU settings, and a fine-tuned ram-air system to increase torque. Best of all, the CBR600RR gets a new “Big Piston” fork and retuned rear shock. And it’s all wrapped up in some sharp new bodywork. There’s even a version with Honda’s revolutionary Electronic Combined Anti-Lock Braking System (C-ABS), the first ever on a production Supersport motorcycle. |
| General information | |
|---|---|
| Model name | Honda CBR600RR |
| Model year | 2013 |
| Category | Sport |
| Price as new | US$ 23990. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 599.0 ccm (36.55 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 118.0 HP (86.1 kW)) @ 13500 RPM |
| Torque | 66.0 Nm (6.7 kgf-m or 48.7 ft.lbs) @ 11250 RPM |
| Compression | 12.2:1 |
| Bore x stroke | 67.0 x 42.5 mm (2.6 x 1.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Computer-controlled digital transistorized with 3-D mapping |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Cable- |
| Driveline | #525 O-ring chain |
| Emission details | Meets current EPA standards. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium, twin spar |
| Rake (fork angle) | 23.5° |
| Trail | 98 mm (3.8 inches) |
| Front suspension | 41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Four-piston calipers. Radially mounted. |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 310.0 kg (683.4 pounds) |
| Weight incl. oil, gas, etc | 186.0 kg (410.0 pounds) |
| Power/weight ratio | 0.3806 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1369 mm (53.9 inches) |
| Fuel capacity | 18.17 litres (4.80 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Red, Multicolored Repsol Edition, White/Blue/Red |
| Starter | Electric |
| Instruments | LCD Instrumentation. |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: CBR600RR |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-30 |
| Brake fluid | DOT 4 |
| Spark plugs | NGK, IMR9C-9H |
| Idle speed | 1400 +/- 100 RPM |
| Chain links | 112 |
| Sprockets | 16/41 (front/rear) |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 42 PSI (2.9 Bar or 290 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
