General information |
Model name
|

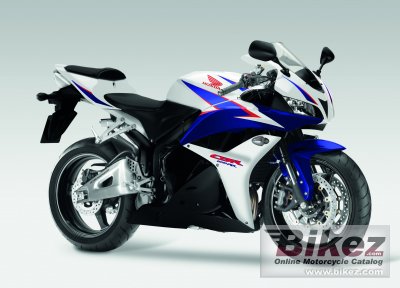

Honda CBR600RR |
Year model
|
2011 |
Type
|
Sport |
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
599.0 ccm (36.55 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Compression
|
12.2:1 |
Bore x stroke
|
67.0 x 42.5 mm (2.6 x 1.7 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Computer-controlled digital transistorized with three-dimensional mapping injectors |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
#525 O-ring chain |
Fuel consumption
|
5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
Greenhouse gases
|
133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
Emission details
|
Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
23.5° |
Trail
|
98 mm (3.8 inches) |
Front suspension
|
41mm inverted HMAS cartridge fork with spring-preload, rebound and compression damping adjustability |
Front wheel travel
|
119 mm (4.7 inches) |
Rear suspension
|
Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
310 mm (12.2 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
310.0 kg (683.4 pounds) |
Weight incl. oil, gas, etc
|
186.0 kg (410.0 pounds) |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Wheelbase
|
1369 mm (53.9 inches) |
Fuel capacity
|
18.17 litres (4.80 US gallons) |
Other specifications |
Color options
|
Red/Black. Black. |
Starter
|
Electric |
Factory warranty
|
One Year. Transferable, unlimited-mileage limited warranty. |
Comments
|
Model ID: CBR600RR |
