General information |
Model name
|

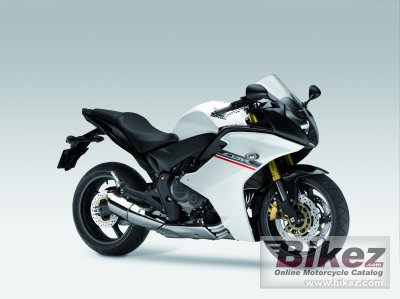

Honda CBR600F |
Year of manufacture
|
2012 |
Type
|
Sport |
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
599.0 ccm (36.55 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Output
|
102.0 HP (74.5 kW)) @ 12000 RPM |
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 10500 RPM |
Compression
|
12.0:1 |
Bore x stroke
|
67.0 x 0.0 mm (2.6 x inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Computer-controlled digital transistorised with electronic advance |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple discs. Mechanical, cable-actuated. |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium, Backbone |
Rake (fork angle)
|
25.0° |
Trail
|
99 mm (3.9 inches) |
Front suspension
|
41mm tension and preload adjustable inverted HMAS cartridge-type telescopic fork, |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Monoshock damper with adjustable tension and preload, |
Rear wheel travel
|
128 mm (5.0 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc. Optional ABS. Three-piston calipers, floating rotors and sintered metal pads |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Single disc. Optional ABS. Single-piston caliper and sintered metal pads |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
198.0 kg (436.5 pounds) |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height
|
1150 mm (45.3 inches) |
Overall length
|
2150 mm (84.6 inches) |
Overall width
|
740 mm (29.1 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Fuel capacity
|
19.00 litres (5.02 US gallons) |
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
Other specifications |
Color options
|
Red/white, blue/white, silver/black |
Electrical
|
12V/8.6AH battery |
Light
|
12V; 60/55W low and high headlights |
