General information |
|
Motorcycle name
|

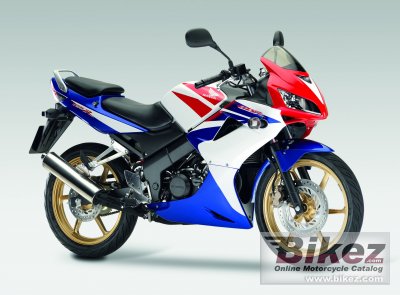

Honda CBR125 |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.7 ccm (7.61 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
13.4 HP (9.8 kW)) @ 10000 RPM |
|
Torque
|
10.6 Nm (1.1 kgf-m or 7.8 ft.lbs) @ 8250 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
58.0 x 47.2 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Fully transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
31mm telescopic fork, 109mm axle travel |
|
Rear suspension
|
Monoshock damper, 120 mm axle travel |
|
Front tire
|
80/90-M17 |
|
Rear tire
|
100/80-M17 |
|
Front brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
127.3 kg (280.6 pounds) |
|
Power/weight ratio
|
0.1053 HP/kg |
|
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
|
Overall length
|
1920 mm (75.6 inches) |
|
Ground clearance
|
172 mm (6.8 inches) |
|
Wheelbase
|
1294 mm (50.9 inches) |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, white, black |
|
Starter
|
Electric |
