General information |
|
Model
|

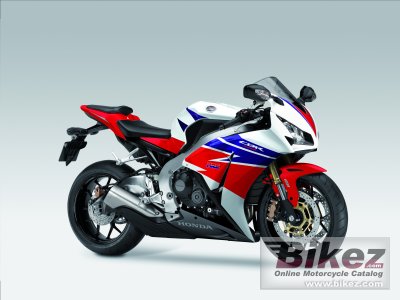

Honda CBR1000RR |
|
Year of manufacture
|
2013 |
|
Type
|
Sport |
| Price as new | US$ 13800. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Output
|
175.6 HP (128.2 kW)) @ 1200 RPM |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 8500 RPM |
|
Top speed
|
287.0 km/h (178.3 mph) |
|
Compression
|
12.3:1 |
|
Bore x stroke
|
76.0 x 55.1 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorized with 3-D mapping |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate with diaphragm spring |
|
Driveline
|
#530 O-ring-sealed chain |
|
Fuel consumption
|
5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
|
Greenhouse gases
|
133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond; aluminium composite twin-spar |
|
Rake (fork angle)
|
23.0° |
|
Trail
|
96 mm (3.8 inches) |
|
Front suspension
|
43mm inverted Big Piston fork with spring preload, rebound and compression damping adjustability |
|
Front wheel travel
|
109 mm (4.3 inches) |
|
Rear suspension
|
Unit Pro-Link Balance Free Rear Shock with spring preload, rebound and compression-damping adjustability |
|
Rear wheel travel
|
137 mm (5.4 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc. Floating discs. Four-piston calipers. Radially mounted. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
173.0 kg (381.4 pounds) |
|
Weight incl. oil, gas, etc
|
199.1 kg (439.0 pounds) |
|
Power/weight ratio
|
1.0150 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
17.79 litres (4.70 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
3.00 litres (3.17 US quarts) |
|
Other specifications |
|
Color options
|
Red, Repsol Edition,White/Blue/Red |
|
Starter
|
Electric |
|
Instruments
|
LCD Instrumentation. |
|
Factory warranty
|
One year. Unlimited milage. Transferable. |
|
Comments
|
Model ID: CBR1000RR |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-30 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Fork tube size
|
43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
