| General information |
|---|

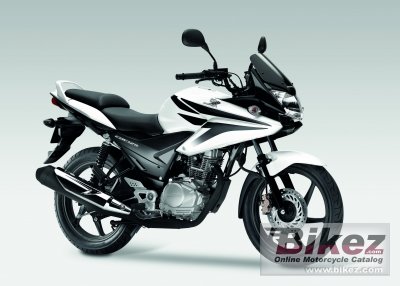

| Model | Honda CBF125 |
| Year | 2010 |
| Category | Allround |
| Rating | 2.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 124.7 ccm (7.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 11.1 HP (8.1 kW)) @ 8000 RPM |
| Torque | 11.2 Nm (1.1 kgf-m or 8.3 ft.lbs) @ 6250 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Computer controlled fully transistorised with electronic advance |
| Cooling system | Air |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | 30mm telescopic fork, 115mm axle travel |
| Rear suspension | Conventional twin shock, double tube damper with 3-step adjustable spring preload, 87mm axle travel |
| Front tire | 80/0-M17 |
| Rear tire | 100/90-M17 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 128.0 kg (282.2 pounds) |
| Power/weight ratio | 0.0870 HP/kg |
| Seat height | 792 mm (31.2 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 1955 mm (77.0 inches) |
| Overall width | 760 mm (29.9 inches) |
| Ground clearance | 173 mm (6.8 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications |
|---|
| Color options | Red, black, white |
| Starter | Electric |
