General information |
|
Model name
|

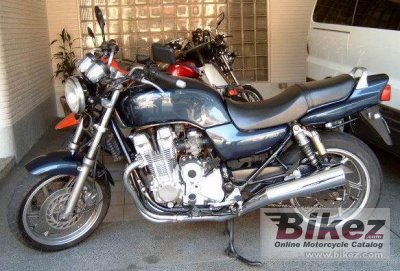

Honda CB 750 Seven-Fifty |
|
Year model
|
1995 |
|
Type
|
Naked bike |
|
Rating
|
4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
747.0 ccm (45.58 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Effect
|
73.0 HP (53.3 kW)) @ 8500 RPM |
|
Torque
|
61.8 Nm (6.3 kgf-m or 45.6 ft.lbs) @ 7500 RPM |
|
Top speed
|
205.0 km/h (127.4 mph) |
|
Compression
|
9.3:1 |
|
Bore x stroke
|
67.0 x 53.0 mm (2.6 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Fully transistorized |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
41mm air-assist stepless preload adjustable RTF VIII fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Dual conventional remote reservoir dampers with adjustable spring preload |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
150/70-ZR17 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake). Single-piston caliper. |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
215.0 kg (474.0 pounds) |
|
Power/weight ratio
|
0.3395 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Oil capacity
|
3.00 litres (3.17 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Spark plugs
|
NGK DPR8EA-9, NGK DPR8EIX-9 |
|
Idle speed
|
1200 +/- 100 RPM |
|
Chain links
|
112 |
|
Sprockets
|
15/40 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
