General information |
|
Model name
|

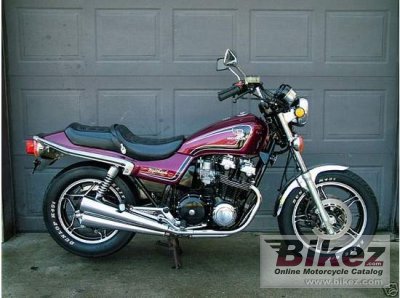

Honda CB 750 SC Nighthawk |
|
Year
|
1983 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
749.0 ccm (45.70 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
70.0 HP (51.1 kW)) @ 7200 RPM |
|
Top speed
|
210.8 km/h (131.0 mph) |
|
Max RPM
|
9500 |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
61.0 x 61.0 mm (2.4 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 4 keihin 30 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
wet plate |
|
Exhaust system
|
four into four |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
dual downtube, full cradle, mild steel |
|
Rake (fork angle)
|
29.5° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
leading axle coil,air spring fork,anti dive yielding |
|
Rear wheel travel
|
155 mm (6.1 inches) |
|
Front brakes
|
Double disc. 2 piston calipers |
|
Rear brakes
|
Expanding brake (drum brake). rod actuated drum |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
259.9 kg (573.0 pounds) |
|
Overall height
|
792 mm (31.2 inches) |
|
Overall length
|
2184 mm (86.0 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
163 mm (6.4 inches) |
|
Wheelbase
|
1544 mm (60.8 inches) |
|
Other specifications |
|
Color options
|
red,black stripes |
|
Starter
|
Electric |
