1976 Honda CB 750 F 1

Honda CB 750 F 1 1976


1976 Honda CB 750 F 1 specifications, pictures, reviews and rating

1976 Honda CB 750 F 1

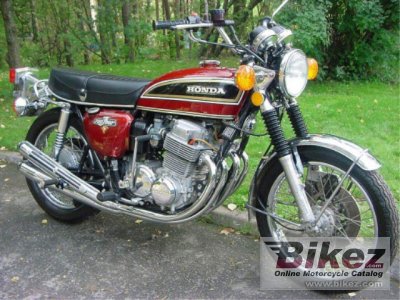

1976 Honda CB 750 F 1. Picture submitted by anonymous user.. Submit more pictures.
General information
Motorcycle name Honda CB 750 F 1
Year 1976
Category Naked bike
Rating 3.5  See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle.
Engine and transmission
Displacement 736.0 ccm (44.91 cubic inches)
Engine type In-line four, four-stroke
Power 67.0 HP (48.9 kW)) @ 8500 RPM
Top speed 194.0 km/h (120.5 mph)
Compression 9.2:1
Bore x stroke 61.0 x 63.0 mm (2.4 x 2.5 inches)
Valves per cylinder 2
Fuel control Overhead Cams (OHC)
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire 3.25-19
Rear tire 4.00-18
Front brakes Single disc
Rear brakes Single disc
Physical measures and capacities
Weight incl. oil, gas, etc 247.0 kg (544.5 pounds)
Fuel capacity 18.00 litres (4.76 US gallons)
Other specifications
