General information |
|
Motorcycle name
|

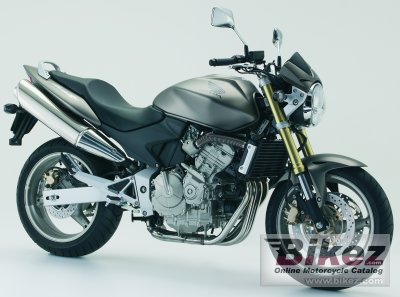

Honda CB 600 F Hornet |
|
Year model
|
2006 |
|
Type
|
Naked bike |
|
Rating
|
3.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
600.0 ccm (36.61 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Effect
|
95.2 HP (69.5 kW)) @ 12000 RPM |
|
Torque
|
63.0 Nm (6.4 kgf-m or 46.5 ft.lbs) @ 9500 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
65.0 x 45.2 mm (2.6 x 1.8 inches) |
|
Fuel system
|
Carburettor. 36mm slanted flat-slide CV-type carburettor x 4 |
|
Ignition
|
Computer-controlled digital transistorised with electronic advance |
|
Lubrication system
|
Wet sump |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate with coil springs |
|
Driveline
|
O-ring-sealed chain |
|
Fuel consumption
|
5.88 litres/100 km (17.0 km/l or 40.00 mpg) |
|
Greenhouse gases
|
136.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel backbone |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
Telescopic fork, 41 mm |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Monoshock, adjustable |
|
Rear wheel travel
|
116 mm (4.6 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Single-piston caliper. |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
178.0 kg (392.4 pounds) |
|
Weight incl. oil, gas, etc
|
198.0 kg (436.5 pounds) |
|
Power/weight ratio
|
0.5349 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2055 mm (80.9 inches) |
|
Overall width
|
745 mm (29.3 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
K&N KN-204 |
|
Battery
|
Yuasa YTX7L-BS |
|
Spark plugs
|
NGK, CR9EH-9 |
|
Chain size
|
525 |
|
Chain links
|
110 |
|
Sprockets
|
15/42 (front/rear) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
