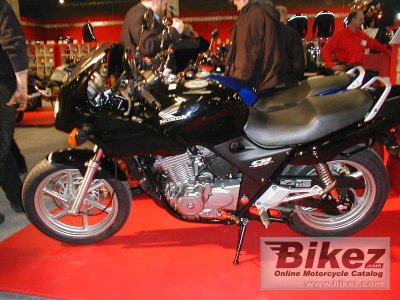

Honda CB 500 S 20022002 Honda CB 500 S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Honda CB 500 S |
| Model year | 2002 |
| Category | Allround |
| Rating | 3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 499.0 ccm (30.45 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 57.5 HP (42.0 kW)) @ 9500 RPM |
| Torque | 46.0 Nm (4.7 kgf-m or 33.9 ft.lbs) @ 8000 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 73.0 x 59.6 mm (2.9 x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 115 mm (4.5 inches) |
| Rear wheel travel | 117 mm (4.6 inches) |
| Front tire | 110/80-17 57H |
| Rear tire | 130/80-17 65H |
| Front brakes | Single disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 177.0 kg (390.2 pounds) |
| Power/weight ratio | 0.3249 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1050 mm (41.3 inches) |
| Overall length | 2095 mm (82.5 inches) |
| Overall width | 720 mm (28.3 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1435 mm (56.5 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
