Honda CB 350 19721972 Honda CB 350 specifications, pictures, reviews and rating |
../pictures/honda/1972

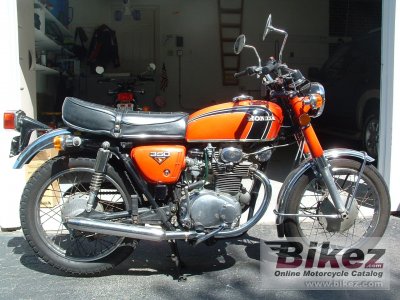

1972 Honda CB 350. Matt McNeil-s 1972 Honda CB 350K.
1972 Honda CB 350. Matt McNeil-s 1972 Honda CB 350K.
| General information | |
|---|---|
| Motorcycle name | Honda CB 350 |
| Year of manufacture | 1972 |
| Type | Classic |
| Rating | 3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 325.0 ccm (19.83 cubic inches) |
| Type of engine | Twin, four-stroke |
| Output | 36.0 HP (26.3 kW)) @ 10500 RPM |
| Torque | 25.0 Nm (2.5 kgf-m or 18.4 ft.lbs) |
| Top speed | 165.0 km/h (102.5 mph) |
| Compression | 9.5:1 |
| Bore x stroke | 64.0 x 50.6 mm (2.5 x 2.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Coil and breaker points |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescoping fork |
| Rear suspension | Swinging arm |
| Front tire | 3.00-18 |
| Rear tire | 3.50-18 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 149.0 kg (328.5 pounds) |
| Weight incl. oil, gas, etc | 170.0 kg (374.8 pounds) |
| Power/weight ratio | 0.2416 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall length | 2040 mm (80.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Wheelbase | 1300 mm (51.2 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Oil capacity | 3.50 litres (3.7 US quarts) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Brake fluid | DOT 4 |
| Battery | YB12C-A |
| Spark plugs | NGK DR8ES, NGK DR8ES-L |
| Idle speed | 1200 RPM |
| Chain size | 530 |
| Chain links | 96 |
| Sprockets | 17/38 (front/rear) |
| Tire pressure front | 29 PSI (2 Bar or 200 kPa) |
| Tire pressure rear | 32 PSI (2.2 Bar or 220 kPa) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
