General information |
|
Motorcycle name
|

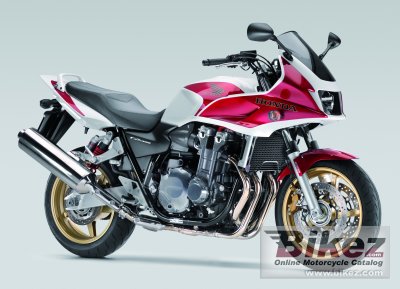

Honda CB 1300 S |
|
Model year
|
2008 |
|
Category
|
Sport |
|
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1284.0 ccm (78.35 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
114.0 HP (83.2 kW)) @ 7500 RPM |
|
Torque
|
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 5500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
78.0 x 67.2 mm (3.1 x 2.6 inches) |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
43mm cartridge-type telescopic fork with adjustable compression and rebound damping, 109 mm axle travel |
|
Rear suspension
|
Dual conventional dampers with 5-step adjustable spring pre-load and rebound damping, 116 mm axle travel |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
256 mm (10.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
236.0 kg (520.3 pounds) |
|
Power/weight ratio
|
0.4831 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2220 mm (87.4 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1515 mm (59.6 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
