General information |
|
Model
|

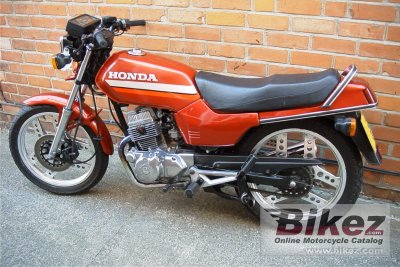

Honda CB 125 TD-C |
|
Model year
|
1983 |
|
Category
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
15.0 HP (10.9 kW)) @ 11000 RPM |
|
Torque
|
10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 8500 RPM |
|
Top speed
|
113.0 km/h (70.2 mph) |
|
Max RPM
|
13000 |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
44.0 x 41.0 mm (1.7 x 1.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Keihin |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI (Capacitor Discharge Ignition) |
|
Lubrication system
|
Wet sump, force fed |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet ,multiplate |
|
Fuel consumption
|
2.35 litres/100 km (42.6 km/l or 100.09 mpg) |
|
Greenhouse gases
|
54.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Double stainless steel pipes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Open diamond, engine used as stressed member |
|
Front suspension
|
Oil damped telescopic |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Pivoted fork, ´Pro-Link´ rising rate suspension system |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front brakes
|
Single disc. Disk, hydraulic (two pot) |
|
Rear brakes
|
Expanding brake (drum brake). Expanding brake (Drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
124.0 kg (273.4 pounds) |
|
Power/weight ratio
|
0.1210 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
775 mm (30.5 inches) If adjustable, highest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
2060 mm (81.1 inches) |
|
Overall width
|
730 mm (28.7 inches) |
|
Ground clearance
|
180 mm (7.1 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Pretty much any colour |
|
Starter
|
Electric |
