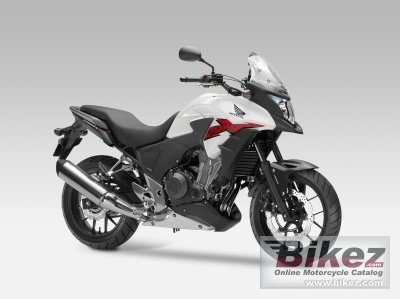

Honda CB500X 20132013 Honda CB500X specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| If you could use a little more adventure in your life—and who couldn’t? — the CB500X can deliver on that idea at a surprisingly affordable price. The adventure-style CB500X delivers a fun-to-ride option with an extra dose of versatility. The compact windscreen up front can be adjusted to varying heights, and the larger-capacity fuel tank has been carefully shaped to give the rider an unrestricted riding position. |
| General information | |
|---|---|
| Model | Honda CB500X |
| Model year | 2013 |
| Category | Sport |
| Rating | 4.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 471.0 ccm (28.74 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 46.9 HP (34.3 kW)) @ 8500 RPM |
| Torque | 43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 7000 RPM |
| Compression | 10.7:1 |
| Bore x stroke | 67.0 x 66.8 mm (2.6 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate |
| Driveline | Sealed o-ring chain |
| Fuel consumption | 3.70 litres/100 km (27.0 km/l or 63.57 mpg) |
| Greenhouse gases | 85.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details | Meets current EPA standards. California version meets current CARB standards. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, Diamond. Swing arm: 567.7mm. |
| Rake (fork angle) | 26.5° |
| Trail | 108 mm (4.3 inches) |
| Front suspension | Conventional Telescopic, 41mm |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Prolink mono with 9 stage Preload adjuster, steel square pipe swingarm |
| Rear wheel travel | 119 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Single disc. Wave disc. Two-piston calipers. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Wave disc. Single-piston caliper. |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 178.0 kg (392.4 pounds) |
| Weight incl. oil, gas, etc | 195.0 kg (429.9 pounds) |
| Power/weight ratio | 0.2637 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1262 mm (49.7 inches) |
| Overall length | 2096 mm (82.5 inches) |
| Overall width | 822 mm (32.4 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Wheelbase | 1421 mm (55.9 inches) |
| Fuel capacity | 17.30 litres (4.57 US gallons) |
| Oil capacity | 3.20 litres (3.38 US quarts) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Instruments | Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge and Fuel Consumption Gauge, Digital Clock |
| Electrical | 12V 8.6Ah battery. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Honda CB500X discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Rate motorcycles you know
Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 Honda CB500X and compare it to other bikes here.| Rating sample for this Honda bike | |
Reliability for the 2013 Honda CB500X:  (87.9 out of 100)Click here for complete rating. |
|
