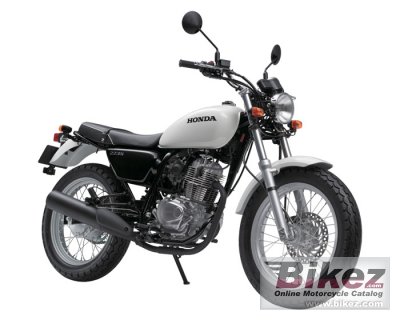

Honda CB223S 20112011 Honda CB223S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda CB223S |
| Year model | 2011 |
| Type | Allround |
| Rating | 3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Torque | 18.0 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 5500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 76.0 x 55.0 mm (3.0 x 2.2 inches) |
| Fuel system | Carburettor. VE3DC |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Trail | 84 mm (3.3 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Swing arm |
| Front tire | 110/90-18 |
| Rear tire | 130/80-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 135.0 kg (297.6 pounds) |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2100 mm (82.7 inches) |
| Overall width | 780 mm (30.7 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1395 mm (54.9 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
| Color options | Black, Red, White |
| Starter | Electric |
| Comments | Sold in the Asian market. |
