Honda's profilation of this bike |
Its 1300cc DOHC inline-4 engine churns out fast acceleration with strong mid-range performance. |
General information |
Motorcycle name
|

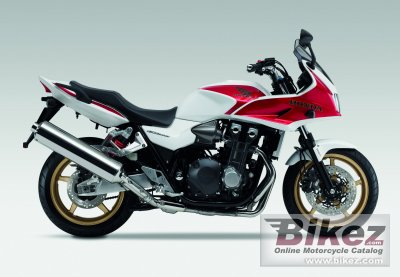

Honda CB1300SA |
Year of manufacture
|
2011 |
Type
|
Sport |
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1284.0 ccm (78.35 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Output
|
112.7 HP (82.2 kW)) @ 7750 RPM |
Torque
|
116.0 Nm (11.8 kgf-m or 85.6 ft.lbs) @ 6000 RPM |
Compression
|
9.6:1 |
Bore x stroke
|
78.0 x 67.2 mm (3.1 x 2.6 inches) |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Computer-controlled digital transistorised with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiplate with coil springs |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.0° |
Trail
|
99 mm (3.9 inches) |
Front suspension
|
Cartridge type telescopic fork with adjustable compression and rebound |
Rear suspension
|
Dual conventional dampers with 5-step adjustable spring preload |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
310 mm (12.2 inches) |
Rear brakes
|
Single disc |
Diameter
|
256 mm (10.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
271.0 kg (597.5 pounds) |
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
Overall height
|
1208 mm (47.6 inches) |
Overall length
|
2220 mm (87.4 inches) |
Overall width
|
795 mm (31.3 inches) |
Wheelbase
|
1510 mm (59.4 inches) |
Fuel capacity
|
21.00 litres (5.55 US gallons) |
Oil capacity
|
3.80 litres (4.02 US quarts) |
Other specifications |
Color options
|
Black |
