General information |
|
Motorcycle name
|

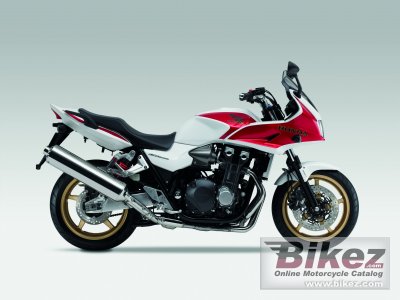

Honda CB1300SA |
|
Model year
|
2010 |
|
Category
|
Sport |
|
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1284.0 ccm (78.35 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
112.7 HP (82.2 kW)) @ 7750 RPM |
|
Torque
|
116.0 Nm (11.8 kgf-m or 85.6 ft.lbs) @ 6000 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
78.0 x 67.2 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate with coil springs |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
Cartridge type telescopic fork with adjustable compression and rebound |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Dual conventional dampers with 5-step adjustable spring preload |
|
Rear wheel travel
|
115 mm (4.5 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
256 mm (10.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
271.0 kg (597.5 pounds) |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1208 mm (47.6 inches) |
|
Overall length
|
2220 mm (87.4 inches) |
|
Overall width
|
795 mm (31.3 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Black, white/red |
|
Starter
|
Electric |
