General information |
|
Model name
|

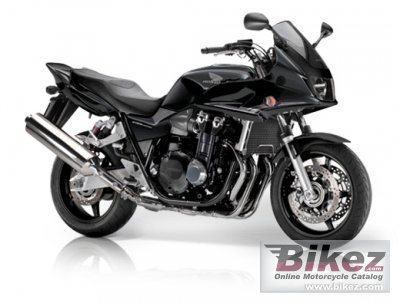

Honda CB1300S ABS |
|
Model year
|
2012 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1284.0 ccm (78.35 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
99.2 HP (72.4 kW)) @ 7000 RPM |
|
Torque
|
114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 5500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
78.0 x 67.2 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorised with electronic advance |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-plate |
|
Driveline
|
5-speed constant mesh |
|
Fuel consumption
|
3.92 litres/100 km (25.5 km/l or 60.01 mpg) |
|
Greenhouse gases
|
90.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
43mm cartridge-type telescopic fork with adjustable compression and rebound damping |
|
Front wheel travel
|
109 mm (4.3 inches) |
|
Rear suspension
|
Dual conventional dampers with 5-step adjustable spring pre-load and rebound damping |
|
Rear wheel travel
|
116 mm (4.6 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. 4-piston callipers. Anti-locking brakes (ABS) |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Anti-locking brakes (ABS) |
|
Diameter
|
256 mm (10.1 inches) |
|
Wheels
|
U-section 5-spoke cast aluminium |
|
Physical measures and capacities |
|
Dry weight
|
236.0 kg (520.3 pounds) |
|
Power/weight ratio
|
0.4205 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
2200 mm (86.6 inches) |
|
Overall width
|
795 mm (31.3 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.50 litres (1.19 US gallons) |
|
Other specifications |
|
Color options
|
Red/white, black |
|
Starter
|
Electric |
