General information |
Motorcycle name
|

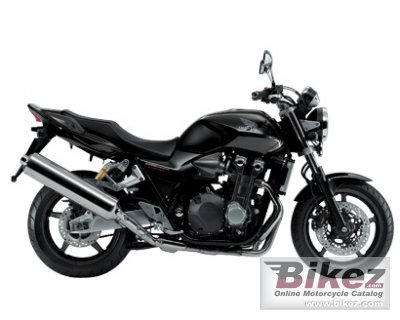

Honda CB1300 Super Four |
Year of manufacture
|
2011 |
Type
|
Allround |
Rating
|
3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
1284.0 ccm (78.35 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Engine details
|
SC54E engine. |
Output
|
99.2 HP (72.4 kW)) @ 7000 RPM |
Torque
|
114.0 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 5500 RPM |
Compression
|
9.6:1 |
Bore x stroke
|
78.0 x 67.2 mm (3.1 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet multi-plate coil spring |
Driveline
|
5-speed constant mesh |
Fuel consumption
|
3.92 litres/100 km (25.5 km/l or 60.01 mpg) |
Greenhouse gases
|
90.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.0° |
Trail
|
99 mm (3.9 inches) |
Front suspension
|
Telescopic fork |
Rear suspension
|
Swing arm |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Dry weight
|
261.0 kg (575.4 pounds) |
Power/weight ratio
|
0.3802 HP/kg |
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
Overall height
|
1110 mm (43.7 inches) |
Overall length
|
2200 mm (86.6 inches) |
Overall width
|
795 mm (31.3 inches) |
Ground clearance
|
125 mm (4.9 inches) |
Wheelbase
|
1510 mm (59.4 inches) |
Fuel capacity
|
21.00 litres (5.55 US gallons) |
Other specifications |
Color options
|
Red/white, black |
Starter
|
Electric |
Comments
|
Sold in Japan |
