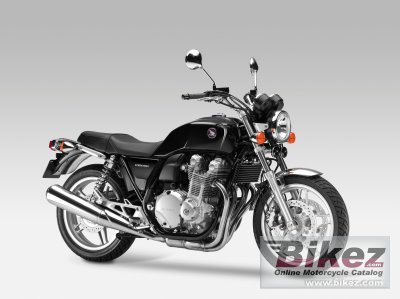

Honda CB1100 ABS 20132013 Honda CB1100 ABS specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The CB1100 features front and rear disc brakes, and the thoroughly modern option of Honda’s Combined Anti-lock Brake System. That makes for powerful, sure stops. Because you never know what the open road is going to throw at you. |
| General information | |
|---|---|
| Motorcycle name | Honda CB1100 ABS |
| Model year | 2013 |
| Category | Classic |
| Rating | 3.4 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1140.0 ccm (69.56 cubic inches) |
| Engine type | In-line four, four-stroke |
| Torque | 93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) |
| Compression | 9.5:1 |
| Bore x stroke | 73.5 x 67.2 mm (2.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI with automatic enrichment circuit, 32mm throttle bodies |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital transistorized with electronic advance |
| Lubrication system | Wet sump |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate wet clutch |
| Driveline | #530 O-ring-sealed chain |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double steel cradle |
| Rake (fork angle) | 27.0° |
| Trail | 107 mm (4.2 inches) |
| Front suspension | 41mm fork with spring preload adjustability |
| Front wheel travel | 106 mm (4.2 inches) |
| Rear suspension | Dual shocks with spring preload adjustability |
| Rear wheel travel | 114 mm (4.5 inches) |
| Front tire | 110/80-18 |
| Rear tire | 140/70-18 |
| Front brakes | Double disc. ABS. Floating discs. Four-piston calipers. |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. ABS. Single-piston. |
| Diameter | 256 mm (10.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 250.0 kg (551.2 pounds) |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall length | 2195 mm (86.4 inches) |
| Wheelbase | 1491 mm (58.7 inches) |
| Fuel capacity | 14.76 litres (3.90 US gallons) |
| Reserve fuel capacity | 3.41 litres (0.90 US gallons) |
| Oil capacity | 4.90 litres (5.18 US quarts) |
| Other specifications | |
| Color options | Candy Red |
| Starter | Electric |
| Electrical | 11.2Ah battery. |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: CB1100A |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-30 |
| Brake fluid | DOT 4 |
| Battery | YTZ14S |
| Spark plugs | NGK LMAR8A-95 |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 42 PSI (2.9 Bar or 290 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
