General information |
|
Model name
|

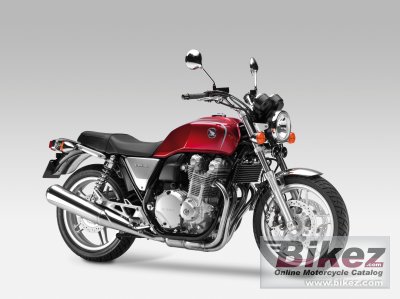

Honda CB1100 |
|
Year of manufacture
|
2013 |
|
Type
|
Classic |
| Price as new | US$ 9999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
4.0 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1140.0 ccm (69.56 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
73.5 x 67.2 mm (2.9 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI with automatic enrichment circuit, 32mm throttle bodies |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital transistorized with electronic advance |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
#530 O-ring-sealed chain |
|
Emission details
|
Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
107 mm (4.2 inches) |
|
Front suspension
|
41mm fork with spring preload adjustability |
|
Rear suspension
|
Dual shocks with spring preload adjustability |
|
Front tire
|
110/80-18 |
|
Rear tire
|
140/70-18 |
|
Front brakes
|
Double disc. Floating discs. Four-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Single-piston. |
|
Diameter
|
256 mm (10.1 inches) |
|
Physical measures and capacities |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1491 mm (58.7 inches) |
|
Fuel capacity
|
14.76 litres (3.90 US gallons) |
|
Other specifications |
|
Color options
|
Candy Red |
|
Starter
|
Electric |
|
Factory warranty
|
One year. Unlimited milage. Transferable. |
|
Comments
|
Model ID: CB1100 |
| Update specs | Report missing specs or required updates. |
|
