General information |
|
Motorcycle name
|

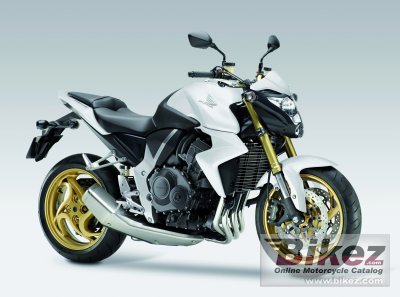

Honda CB1000R ABS |
|
Year
|
2013 |
|
Category
|
Naked bike |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Top speed
|
229.0 km/h (142.3 mph) |
|
Compression
|
11.2:1 |
|
Bore x stroke
|
75.0 x 56.5 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI Fuel injection with automatic enrichment circuit and 36mm throttle bodies |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorized with 3-D mapping |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
#530 0-ring-sealed chain |
|
Fuel consumption
|
6.36 litres/100 km (15.7 km/l or 36.98 mpg) |
|
Greenhouse gases
|
147.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability |
|
Front wheel travel
|
109 mm (4.3 inches) |
|
Rear suspension
|
Single gas-charged HMAS shock with spring preload and rebound damping adjustability |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. ABS. Single-piston caliper. |
|
Diameter
|
256 mm (10.1 inches) |
|
Wheels
|
4 –spoke cast aluminium |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
217.0 kg (478.4 pounds) |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
2105 mm (82.9 inches) |
|
Overall width
|
785 mm (30.9 inches) |
|
Wheelbase
|
1445 mm (56.9 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
White, black |
|
Starter
|
Electric |
