General information |
Model name
|

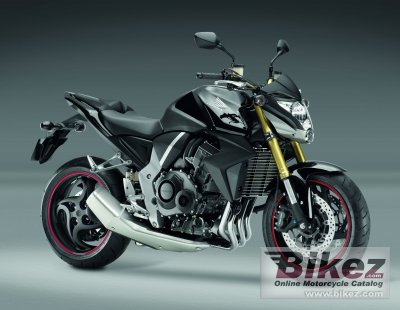

Honda CB1000R ABS |
Year
|
2011 |
Category
|
Naked bike |
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
998.0 ccm (60.90 cubic inches) |
Engine type
|
In-line four, four-stroke |
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 8000 RPM |
Compression
|
11.2:1 |
Bore x stroke
|
75.0 x 56.5 mm (3.0 x 2.2 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI Fuel injection with automatic enrichment circuit and 36mm throttle bodies |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Computer-controlled digital transistorized with 3-D mapping |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
#530 O-ring sealed chain |
Emission details
|
Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.0° |
Trail
|
99 mm (3.9 inches) |
Front suspension
|
43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability |
Front wheel travel
|
119 mm (4.7 inches) |
Rear suspension
|
Single gas-charged HMAS shock with spring preload and rebound damping adjustability |
Rear wheel travel
|
127 mm (5.0 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc. Anti-locking brakes |
Diameter
|
310 mm (12.2 inches) |
Rear brakes
|
Single disc |
Diameter
|
256 mm (10.1 inches) |
Wheels
|
Closed-section 4-spoke cast aluminium |
Physical measures and capacities |
Dry weight
|
222.0 kg (489.4 pounds) |
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
Overall height
|
1095 mm (43.1 inches) |
Overall length
|
2105 mm (82.9 inches) |
Overall width
|
785 mm (30.9 inches) |
Wheelbase
|
1445 mm (56.9 inches) |
Fuel capacity
|
17.03 litres (4.50 US gallons) |
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
Other specifications |
Color options
|
Pearl Black, red, white, silver |
Starter
|
Electric |
