General information |
|
Model
|

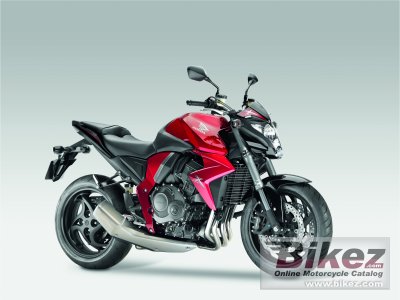

Honda CB1000R |
|
Year
|
2010 |
|
Category
|
Sport |
|
Rating
|
4.1 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
123.4 HP (90.1 kW)) @ 10000 RPM |
|
Torque
|
99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 7500 RPM |
|
Compression
|
11.2:1 |
|
Bore x stroke
|
75.0 x 56.5 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorised with electronic advance. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate with coil springs |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mono-backbone; cast aluminium |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm cushion stroke |
|
Rear suspension
|
Monoshock with gas-charged HMAS damper featuring 10-step preload and stepless rebound damping adjustment, 128mm axle travel |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
265 mm (10.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
2105 mm (82.9 inches) |
|
Overall width
|
785 mm (30.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
3.60 litres (3.8 US quarts) |
|
Other specifications |
|
Color options
|
Pearl Siena Red/Pearl Nightstar Black,
Matt Vanguard Beige Metallic, Pearl Nightstar Black, Pearl Cool White |
|
Starter
|
Electric |
