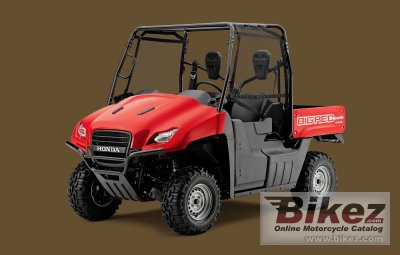

Honda Big Red 20092009 Honda Big Red specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Big Red. What better name could there be for Honda´s first-ever Multi-purpose Utility Vehicle (MUV)? And since it´s a Honda, you just know it´s going to absolutely define the best in the class. |
| General information | |
|---|---|
| Motorcycle name | Honda Big Red |
| Year of manufacture | 2009 |
| Type | Sport |
| Price as new | US$ 11399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 675.0 ccm (41.19 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 102.0 x 82.6 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Electronic fuel injection (PGM-FI): 40mm throttle body |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-Transistorized type with electronic advance |
| Cooling system | Liquid |
| Gearbox | 3-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Independent double-wishbone |
| Rear wheel travel | 180 mm (7.1 inches) |
| Front tire | 25/10-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Double disc |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 649.1 kg (1,431.0 pounds) |
| Seat height | 864 mm (34.0 inches) If adjustable, lowest setting. |
| Overall length | 2913 mm (114.7 inches) |
| Overall width | 1626 mm (64.0 inches) |
| Ground clearance | 262 mm (10.3 inches) |
| Wheelbase | 1923 mm (75.7 inches) |
| Fuel capacity | 29.90 litres (7.90 US gallons) |
| Other specifications | |
| Color options | Red,Camo |
| Starter | Electric |
| Comments | Direct front and rear driveshafts with 3 drive modes: 2WD, 4WD, and 4WD with all-wheel differential lock. Model ID: MUV700 |
