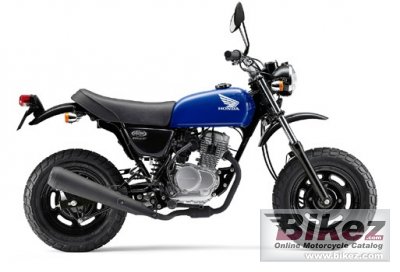

Honda Ape 50 20132013 Honda Ape 50 specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Motorcycle name | Honda Ape 50 |
| Year of manufacture | 2013 |
| Type | Allround |
| Rating | 3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 3.6 HP (2.6 kW)) @ 8000 RPM |
| Torque | 3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 42.0 x 35.6 mm (1.7 x 1.4 inches) |
| Fuel system | Injection. PGM-FI |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Full transistor type battery ignition |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond |
| Rake (fork angle) | 28.0° |
| Trail | 89 mm (3.5 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Swing arm (Pro-link) |
| Front tire | 120/80-12 |
| Rear tire | 120/80-12 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 84.0 kg (185.2 pounds) |
| Seat height | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall height | 1155 mm (45.5 inches) |
| Overall length | 1719 mm (67.7 inches) |
| Overall width | 780 mm (30.7 inches) |
| Ground clearance | 155 mm (6.1 inches) |
| Wheelbase | 1185 mm (46.7 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | Silver, blue, red |
| Starter | Kick |
| Comments | Sold in some Asian countries. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Honda Ape 50 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
