Honda Ape 50 2002

2002 Honda Ape 50 specifications, pictures, reviews and rating

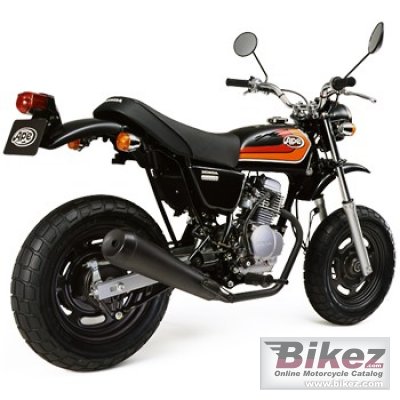

2002 Honda Ape 50. Picture by Honda. Published with permission.. Submit more pictures.

General moped information
Model:	Honda Ape 50
Year:	2002
Category:	Naked bike
Rating:	3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle.
Engine and transmission
Displacement:	49.0 ccm (2.99 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	3.7 HP (2.7 kW)) @ 7500 RPM
Torque:	3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6500 RPM
Compression:	9.2:1
Bore x stroke:	42.0 x 35.6 mm (1.7 x 1.4 inches)
Fuel system:	Carburettor
Fuel control:	Overhead Cams (OHC)
Cooling system:	Air
Gearbox:	5-speed
Chassis, suspension, brakes and wheels
Front tyre:	120/80-12 54J
Rear tyre:	120/80-12 54J
Front brakes:	Expanding brake
Rear brakes:	Expanding brake
Physical measures and capacities
Dry weight:	75.0 kg (165.3 pounds)
Power/weight ratio:	0.0493 HP/kg
Seat height:	715 mm (28.1 inches) If adjustable, lowest setting.
Overall height:	970 mm (38.2 inches)
Overall length:	1710 mm (67.3 inches)
Overall width:	770 mm (30.3 inches)
Ground clearance:	165 mm (6.5 inches)
Wheelbase:	1185 mm (46.7 inches)
Fuel capacity:	5.50 litres (1.45 gallons)
Other specifications
