2013 Honda Ape 100

Honda Ape 100 2013


2013 Honda Ape 100 specifications, pictures, reviews and rating

2013 Honda Ape 100

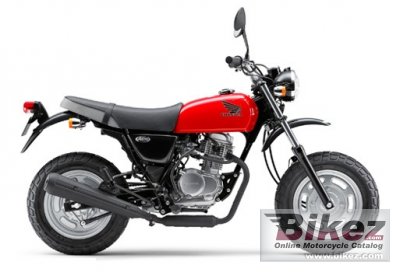

2013 Honda Ape 100. Picture credits - Honda. Submit more pictures.
General information
Model name Honda Ape 100
Year model 2013
Type Allround
Rating Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Engine size 99.0 ccm (6.04 cubic inches)
Type of engine Single cylinder, four-stroke
Effect 6.2 HP (4.5 kW)) @ 8000 RPM
Torque 6.6 Nm (0.7 kgf-m or 4.9 ft.lbs) @ 6000 RPM
Compression 9.4:1
Bore x stroke 53.0 x 45.0 mm (2.1 x 1.8 inches)
Fuel system Carburettor
Fuel control Overhead Cams (OHC)
Ignition CDI
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Clutch Wet, multiplate
Exhaust system catalyst exhaust pipe
Chassis, suspension, brakes and wheels
Frame type Diamond
Trail 89 mm (3.5 inches)
Front suspension Telescopic fork
Rear suspension Swing arm (Pro-link)
Front tire 120/80-12
Rear tire 120/80-12
Front brakes Expanding brake (drum brake)
Rear brakes Expanding brake (drum brake)
Physical measures and capacities
Weight incl. oil, gas, etc 90.0 kg (198.4 pounds)
Seat height 715 mm (28.1 inches) If adjustable, lowest setting.
Overall height 1155 mm (45.5 inches)
Overall length 1715 mm (67.5 inches)
Overall width 770 mm (30.3 inches)
Ground clearance 140 mm (5.5 inches)
Wheelbase 1190 mm (46.9 inches)
Fuel capacity 5.50 litres (1.45 US gallons)
Other specifications
Color options Silver, grey
Starter Kick
Comments Sold in some Asian countries.
