General information |
Model
|

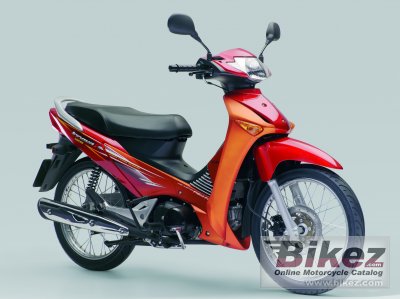

Honda ANF 125 Innova |
Year model
|
2007 |
Type
|
Scooter |
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.9 ccm (7.62 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
9.0 HP (6.6 kW)) @ 7500 RPM |
Torque
|
10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 5000 RPM |
Compression
|
9.3:1 |
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Capacitor Discharge (CDI) with electronic advance |
Cooling system
|
Air |
Gearbox
|
4-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
26mm telescopic fork, 80.5mm axle travel |
Rear suspension
|
Single damper unit swingarm, 81.6mm axle travel |
Front brakes
|
Double disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Dry weight
|
99.5 kg (219.4 pounds) |
Power/weight ratio
|
0.0905 HP/kg |
Seat height
|
768 mm (30.2 inches) If adjustable, lowest setting. |
Overall length
|
1890 mm (74.4 inches) |
Ground clearance
|
145 mm (5.7 inches) |
Wheelbase
|
1240 mm (48.8 inches) |
Fuel capacity
|
3.70 litres (0.98 US gallons) |
Other specifications |
Starter
|
Electric & kick |
Update specs | Report missing specs or required updates. |
