General information |
|
Model name
|

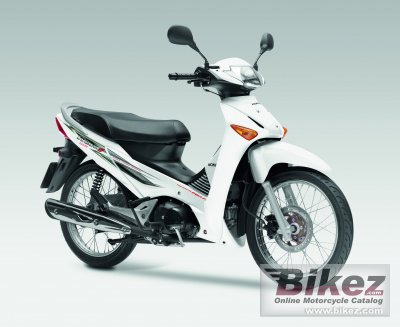

Honda ANF125i Innova |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
9.2 HP (6.7 kW)) @ 7500 RPM |
|
Torque
|
10.1 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 3000 RPM |
|
Compression
|
9.3:1 |
|
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Fully transistorised with electronic advance |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Centrifugal clutch semi-automatic with 4 gears |
|
Driveline
|
Enclosed roller chain |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
26mm telescopic fork, 80.5mm axle travel |
|
Rear suspension
|
Dual damper unit swingarm, 81.6mm axle |
|
Front tire
|
70/100-M17 |
|
Rear tire
|
80/90-M17 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Wheels
|
Steel rim/wire spoke |
|
Physical measures and capacities |
|
Dry weight
|
105.5 kg (232.6 pounds) |
|
Power/weight ratio
|
0.0869 HP/kg |
|
Seat height
|
778 mm (30.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1079 mm (42.5 inches) |
|
Overall length
|
1896 mm (74.6 inches) |
|
Overall width
|
727 mm (28.6 inches) |
|
Ground clearance
|
139 mm (5.5 inches) |
|
Wheelbase
|
1240 mm (48.8 inches) |
|
Fuel capacity
|
3.70 litres (0.98 US gallons) |
|
Other specifications |
|
Color options
|
Blue, white, light blue, gray |
|
Starter
|
Electric & kick |
