General information |
Model
|

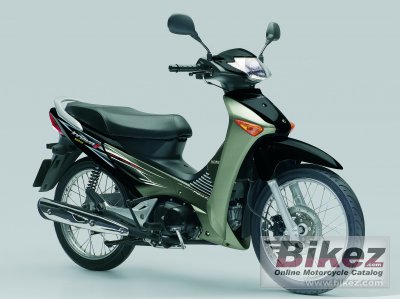

Honda ANF125i Innova |
Model year
|
2009 |
Category
|
Scooter |
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.8 ccm (7.62 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Torque
|
10.1 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 3000 RPM |
Compression
|
9.3:1 |
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
Fuel system
|
Injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Fully transistorised with electronic advance |
Cooling system
|
Air |
Gearbox
|
4-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Centrifugal clutch semi-automatic with 4 gears |
Chassis, suspension, brakes and wheels |
Front suspension
|
26mm telescopic fork, 80.5mm axle travel |
Rear suspension
|
Single damper unit swingarm, 81.6mm axle travel |
Front tire
|
70/100-17 |
Rear tire
|
80/90-17 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
105.5 kg (232.6 pounds) |
Seat height
|
768 mm (30.2 inches) If adjustable, lowest setting. |
Overall height
|
1079 mm (42.5 inches) |
Overall length
|
1896 mm (74.6 inches) |
Overall width
|
727 mm (28.6 inches) |
Ground clearance
|
145 mm (5.7 inches) |
Wheelbase
|
1240 mm (48.8 inches) |
Fuel capacity
|
3.70 litres (0.98 US gallons) |
Other specifications |
Color options
|
White, blue, black, white |
Starter
|
Electric & kick |
