Honda's profilation of this bike |
At first glance, the similarities are clear: gorgeous, retro-inspired lines. Low-slung saddle. Beefy V-twin engine. Yes, this machine is definitely a Honda Shadow. But it´s unlike any Shadow you´ve seen before. |
General information |
Model
|

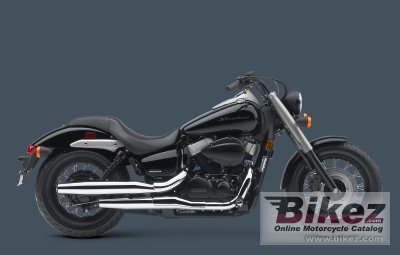

Honda 750 Shadow Phantom |
Year model
|
2010 |
Type
|
Custom / cruiser |
Rating
|
3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
745.0 ccm (45.46 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
9.6:1 |
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Injection. PGM-FI with automatic enrichment circuit, one 34mm throttle body |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital transistorized w/ electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
34.0° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
41mm fork |
Front wheel travel
|
117 mm (4.6 inches) |
Rear suspension
|
Dual shocks with five-position spring-preload adjustability |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
120/90-17 |
Rear tire
|
160/80-15 |
Front brakes
|
Double disc |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
249.0 kg (549.0 pounds) |
Seat height
|
653 mm (25.7 inches) If adjustable, lowest setting. |
Wheelbase
|
1638 mm (64.5 inches) |
Fuel capacity
|
14.76 litres (3.90 US gallons) |
Other specifications |
Color options
|
Black |
Comments
|
Model ID: VT750C2B |
