General information |
Model name
|

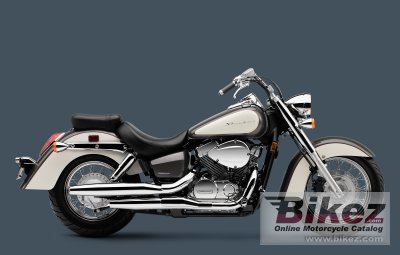

Honda 750 Shadow Aero |
Year
|
2010 |
Category
|
Custom / cruiser |
Price as new | US$ 6999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
745.0 ccm (45.46 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
9.6:1 |
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Carburettor. Single 34mm CV carburetor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD with electronic advance, two spark plugs per cylinder |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
34.0° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
41mm fork |
Front wheel travel
|
117 mm (4.6 inches) |
Rear suspension
|
Dual shocks with five-position spring-preload adjustability |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
120/90-17 |
Rear tire
|
160/80-15 |
Front brakes
|
Single disc. Twin-piston caliper |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
249.0 kg (549.0 pounds) |
Seat height
|
658 mm (25.9 inches) If adjustable, lowest setting. |
Wheelbase
|
1638 mm (64.5 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Reserve fuel capacity
|
3.40 litres (0.90 US gallons) |
Other specifications |
Color options
|
Metallic Titanium/White, Pearl Blue/Metallic Silver, Black/Snakeskin Pattern, Candy Dark Red, Black |
Starter
|
Electric |
Comments
|
Model ID: VT750C |
