General moped information |
|
Motorcycle name
|

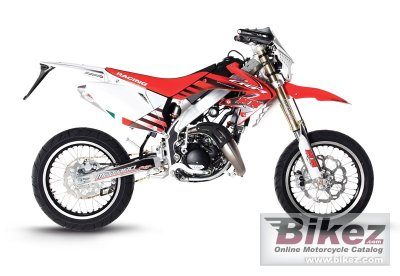

HM Derapage RR 10 |
|
Year
|
2010 |
|
Category
|
Super motard |
| Price as new | Euro 3750. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.7 ccm (3.03 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBN 16 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Mulitplate in oil bath |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. 2 piston caliper |
|
Diameter
|
290 mm (11.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
86.0 kg (189.6 pounds) |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1140 mm (44.9 inches) |
|
Overall length
|
2080 mm (81.9 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Ground clearance
|
273 mm (10.7 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, white |
|
Starter
|
Kick |
|
Comments
|
HM is an abbreviation of Honda Montesa in Italy. |
