HM CRE Baja 10 20102010 HM CRE Baja 10 specifications, pictures, reviews and rating |

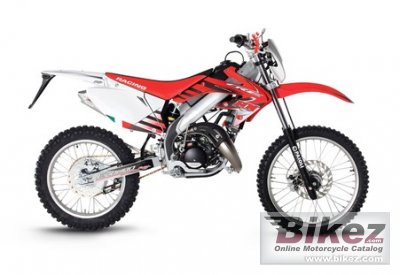

 2010 HM CRE Baja 10. Picture credits - HM. Submit more pictures. |
|
| General moped information | |
|---|---|
| Model name | HM CRE Baja 10 |
| Year model | 2010 |
| Type | Enduro / offroad |
| Price as new | Euro 2990. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.7 ccm (3.03 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell´Orto PHBN 16 |
| Lubrication system | Mixture 2% |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminum |
| Front tire | 80/90-21 |
| Rear tire | 100/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 89.5 kg (197.3 pounds) |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 2160 mm (85.0 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 320 mm (12.6 inches) |
| Wheelbase | 1395 mm (54.9 inches) |
| Fuel capacity | 6.00 litres (1.59 US gallons) |
| Other specifications | |
| Color options | Red, black, white |
| Starter | Electric & kick |
| Comments | HM is an abbreviation of Honda Montesa in Italy. |
