General information |
|
Model name
|

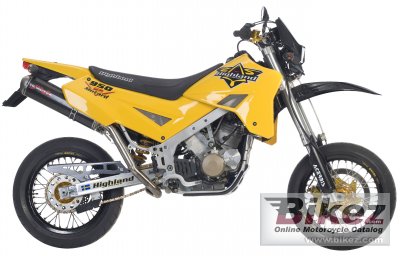

Highland Super Motard |
|
Model year
|
2006 |
|
Category
|
Super motard |
|
Rating
|
2.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
936.0 ccm (57.11 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
83.8 HP (61.2 kW)) @ 6000 RPM |
|
Torque
|
104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 4000 RPM |
|
Top speed
|
200.0 km/h (124.3 mph) |
|
Bore x stroke
|
95.0 x 66.0 mm (3.7 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Highland integrated engine management system with ignition coils fitted directly on the spark plugs |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Rectangular section, CrMo steel and aluminum (7021-T6) swing arm |
|
Rake (fork angle)
|
25.0° |
|
Front suspension
|
50 mm Marzocchi. 280 mm wheel travel, adjustable compression and rebound |
|
Rear suspension
|
Öhlins, 300 mm wheel travel, adjustable pre-load, compression and rebound |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
166.0 kg (366.0 pounds) |
|
Power/weight ratio
|
0.5049 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
270 mm (10.6 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Comments
|
Tuning kit available for racing purposes. |
