| Highland's profilation of this bike |
| When leadership is not an option, it´s just who you are. |
| General information |
|---|

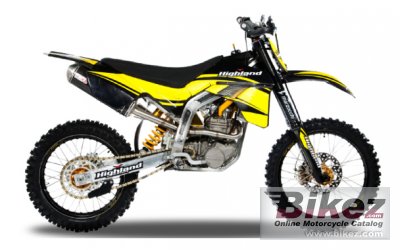

| Model: | Highland 507cc MX |
| Year: | 2011 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 507.0 ccm (30.94 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI, fullu adjustable |
| Ignition: | Digital, coil on plug |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiplate |
| Driveline: | 6-speed constant mesh |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | HyTens stainless steel |
| Front suspension: | Telescopic fork |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | PDS |
| Front tyre: | 80/100-21 |
| Rear tyre: | 110/0-19 |
| Front brakes: | Single disc. 2-piston |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc. Single pistin |
| Diameter: | 221 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Seat height: | 1,011 mm (39.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 315 mm (12.4 inches) |
| Wheelbase: | 1486 mm (58.5 inches) |
| Fuel capacity: | 6.06 litres (1.60 gallons) |
| Other specifications |
|---|
| Color options: | Yellow/black |
| Starter: | Electric |
| Modifications compared to previous model: | Both Highland and USHighland used as brand name. |
