| Highland's profilation of this bike |
| Commitment - to quality and performance. No import stickered with a US label here. Highland hand builds its own powerplants right in the Heartland of USA! |
|
General information |
|
Motorcycle name
|

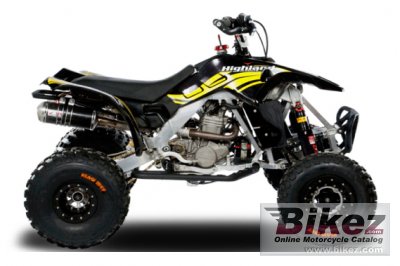

Highland 450cc ATX Quad Racer |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
449.0 ccm (27.40 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI, fully adjustable |
|
Ignition
|
Digital, coil on plug |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Driveline
|
6-speed constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium |
|
Front suspension
|
Elka |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Elka |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Overall width
|
1016 mm (40.0 inches) |
|
Ground clearance
|
127 mm (5.0 inches) |
|
Wheelbase
|
1245 mm (49.0 inches) |
|
Fuel capacity
|
7.57 litres (2.00 US gallons) |
|
Other specifications |
|
Color options
|
Black/yellow |
|
Starter
|
Electric |
|
Modifications compared to previous model
|
Also called USHighland 450 ATX Quad Racer. |
