| Highland's profilation of this bike |
| Made in the USA. The Powerplant. So powerful Nuclear Scientists stand in awe. |
|
General information |
|
Model name
|

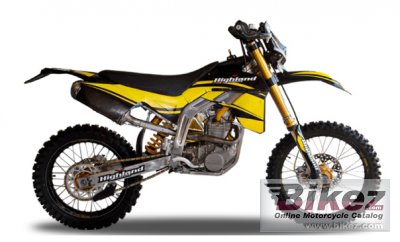

Highland 350cc Trail |
|
Model year
|
2011 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
349.0 ccm (21.30 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Ignition
|
Digital, coil on plug |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Driveline
|
6-speed constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
HyTens stainless steel |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
PDS |
|
Rear wheel travel
|
221 mm (8.7 inches) |
|
Front tire
|
110/80-19 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Single disc. 2-piston |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Single piston |
|
Diameter
|
221 mm (8.7 inches) |
|
Physical measures and capacities |
|
Seat height
|
851 mm (33.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
274 mm (10.8 inches) |
|
Wheelbase
|
1491 mm (58.7 inches) |
|
Fuel capacity
|
7.57 litres (2.00 US gallons) |
|
Other specifications |
|
Color options
|
Black/yellow |
|
Starter
|
Electric |
|
Comments
|
Yellow/black |
|
Modifications compared to previous model
|
USHighland also used as brand name. |
