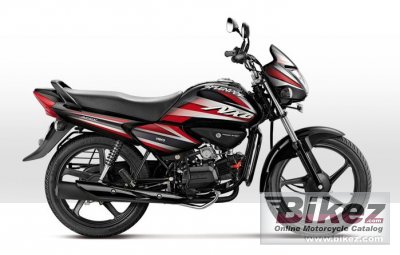

Hero Splendor NXG 20132013 Hero Splendor NXG specifications, pictures, reviews and rating |
| Hero's profilation of this bike |
| Dual Tone Graphics. Convenient Power Start. Next generation aerodynamic design with Black alloy wheels. Stylish Meter Console. |
| General information | |
|---|---|
| Motorcycle name | Hero Splendor NXG |
| Model year | 2013 |
| Category | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 97.5 ccm (5.95 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 7.4 HP (5.4 kW)) @ 8000 RPM |
| Torque | 8.0 Nm (0.8 kgf-m or 5.9 ft.lbs) @ 4500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 50.0 x 49.5 mm (2.0 x 1.9 inches) |
| Fuel system | Carburettor. Side Draft, Variable Venturi Type |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Digital CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multidisc |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular double cradle |
| Front suspension | Telescopic hydraulic shock absorbers |
| Rear suspension | Swing arm with hydraulic shock absorbers |
| Front tire | 2.75-18 |
| Rear tire | 2.75-18 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Wheels | Spoke wheel or cast wheel |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 112.0 kg (246.9 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1095 mm (43.1 inches) |
| Overall length | 1965 mm (77.4 inches) |
| Overall width | 720 mm (28.3 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Reserve fuel capacity | 1.80 litres (0.48 US gallons) |
| Other specifications | |
| Color options | Black, red, silver, blue. All with stripes. |
| Starter | Electric & kick |
| Electrical | 12V 3Ah battery |
| Light | 12V 35W/35W halogen headlight |
| Comments | Sold in India. Brand previously called Hero Honda. |
