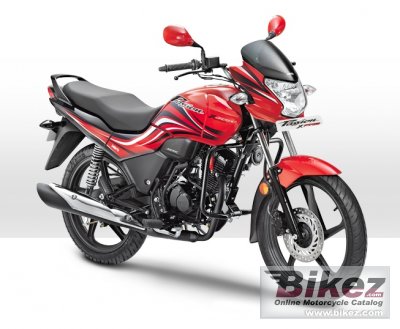

| Hero's profilation of this bike |
| Digital-analog combo meter console. Stylish graphics. Front disc brake and tubeless tyre option. Trapezoidal multi-focal headlamp (MFR).
|
|
General information |
|
Model
|
Hero Passion X Pro |
|
Model year
|
2013 |
|
Category
|
Sport |
|
Rating
|
2.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
109.0 ccm (6.65 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
8.7 HP (6.4 kW)) @ 7500 RPM |
|
Torque
|
9.4 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 5500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
50.0 x 55.6 mm (2.0 x 2.2 inches) |
|
Fuel system
|
Carburettor. Side Draft Variable Venturi (Piston) |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Full Transisterised Ignition System |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate, wet |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular diamond |
|
Front suspension
|
Telescopic hydraulic shock absorbers |
|
Rear suspension
|
Swing arm with hydrualic shock absorbers |
|
Front tire
|
80/100-18 |
|
Rear tire
|
90/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Power/weight ratio
|
0.0725 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2005 mm (78.9 inches) |
|
Overall width
|
765 mm (30.1 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Reserve fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
|
Color options
|
Green, blue, red, black, silver, yellow, green, white |
|
Starter
|
Electric & kick |
|
Instruments
|
Digital/Analog |
|
Electrical
|
12Volt 3Ah battery |
|
Comments
|
Sold in India. Brand previously called Hero Honda. |
