General information |
|
Model name
|

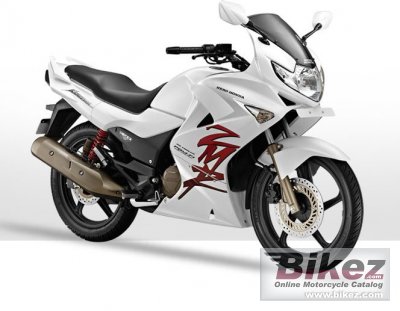

Hero Karizma ZMR |
|
Year of manufacture
|
2012 |
|
Type
|
Sport |
|
Rating
|
3.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
223.0 ccm (13.61 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
17.6 HP (12.8 kW)) @ 7000 RPM |
|
Torque
|
18.4 Nm (1.9 kgf-m or 13.5 ft.lbs) @ 6000 RPM |
|
Top speed
|
126.0 km/h (78.3 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
65.5 x 66.2 mm (2.6 x 2.6 inches) |
|
Fuel system
|
Injection. PGM-FI |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
DC – FTIS (Full Transistorised Ignition System) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate, wet |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular single cradle, diamond type |
|
Front suspension
|
Telescopic Hydraulic Shock absorbers |
|
Rear suspension
|
Swing arm with 5 step adjustable IGRS system |
|
Front tire
|
80/100-18 |
|
Rear tire
|
100/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
5-spoke cast wheel |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
159.0 kg (350.5 pounds) |
|
Front percentage of weight
|
175.0 |
|
Overall height
|
1175 mm (46.3 inches) |
|
Overall length
|
2110 mm (83.1 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
15.30 litres (4.04 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Oil capacity
|
1.40 litres (1.48 US quarts) |
|
Other specifications |
|
Color options
|
Yellow, red, blue, white, black |
|
Starter
|
Electric |
|
Electrical
|
12V 6Ah battery. |
|
Comments
|
Sold in India. Brand previously called Hero Honda. |
