General information |
|
Model
|

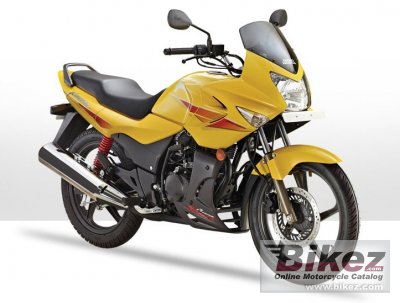

Hero Karizma |
|
Year
|
2012 |
|
Category
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
223.0 ccm (13.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
16.9 HP (12.3 kW)) @ 7000 RPM |
|
Torque
|
18.5 Nm (1.9 kgf-m or 13.6 ft.lbs) @ 6000 RPM |
|
Top speed
|
125.0 km/h (77.7 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
65.5 x 66.2 mm (2.6 x 2.6 inches) |
|
Fuel system
|
Carburettor. VE, constant vacuum carburetor with CCVI (Carb Controlled Variable Ignition) |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
AMI -Advanced Microprocessor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular single cradle, diamond type |
|
Front suspension
|
Telescopic Hydraulic |
|
Rear suspension
|
Swing arm with 5 step hydraulic shock absorbers |
|
Front tire
|
2.75-18 |
|
Rear tire
|
100/90-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Wheels
|
Die alloy wheels |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
150.0 kg (330.7 pounds) |
|
Front percentage of weight
|
162.0 |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
2125 mm (83.7 inches) |
|
Overall width
|
755 mm (29.7 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Color options
|
Black, red, white, grey, yellow |
|
Starter
|
Electric |
|
Electrical
|
12 Volt 7 Ah battery. 188 W alternator. |
|
Light
|
35W / 35W - Halogen bulb (Multi-reflector -D.C type) headlight |
|
Comments
|
Bike made in India. Brand previously called Hero Honda. |
