Hero Honda Splendor NXG 20092009 Hero Honda Splendor NXG specifications, pictures, reviews and rating |

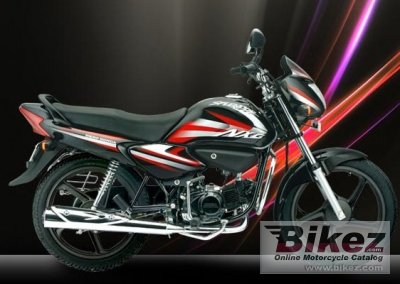

![]() 2009 Hero Honda Splendor NXG. Picture credits - Hero Honda. Submit more pictures. |
General information | |
---|---|
Model: | Hero Honda Splendor NXG |
Year: | 2009 |
Category: | Sport |
Rating: | 2.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission | |
Displacement: | 97.5 ccm (5.95 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 7.4 HP (5.4 kW)) @ 8000 RPM |
Torque: | 7.7 Nm (0.8 kgf-m or 5.7 ft.lbs) @ 5000 RPM |
Compression: | 8.8:1 |
Bore x stroke: | 50.0 x 49.5 mm (2.0 x 1.9 inches) |
Fuel system: | Carburettor |
Fuel control: | Overhead Cams (OHC) |
Ignition: | CDI |
Cooling system: | Air |
Gearbox: | 4-speed |
Transmission type, final drive: | Chain |
Chassis, suspension, brakes and wheels | |
Frame type: | Tubular double cradle |
Front suspension: | Telescopic hydraulic shock absorbers |
Rear suspension: | Swing arm with hydraulic shock absorbers |
Front tyre: | 2.75-18 |
Rear tyre: | 2.75-18 |
Front brakes: | Expanding brake (drum brake) |
Diameter: | 130 mm (5.1 inches) |
Rear brakes: | Expanding brake (drum brake) |
Diameter: | 110 mm (4.3 inches) |
Physical measures and capacities | |
Weight incl. oil, gas, etc: | 107.0 kg (235.9 pounds) |
Seat height: | 785 mm (30.9 inches) If adjustable, lowest setting. |
Overall height: | 1095 mm (43.1 inches) |
Overall length: | 1965 mm (77.4 inches) |
Overall width: | 720 mm (28.3 inches) |
Ground clearance: | 160 mm (6.3 inches) |
Wheelbase: | 1230 mm (48.4 inches) |
Fuel capacity: | 10.00 litres (2.64 gallons) |
Reserve fuel capacity: | 1.80 litres (0.48 gallons) |
Other specifications | |
Color options: | Black, red, silver, purple |
Starter: | Kick |
Comments: | Hero Honda is joint venture between India´s Hero Group and Honda. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
Parts finder |
Chaparral provides online schematics & OEM parts |
Ask questions | Join the 09 Hero Honda Splendor NXG discussion group or the general Hero Honda discussion group. |
Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2009 Hero Honda Splendor NXG discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
Rating sample for this Hero Honda bike | |
Reliability for the 2009 Hero Honda Splendor NXG:![]() ![]() Click here for complete rating. You can also compare bikes. |
![]() |
