| Hero Honda's profilation of this bike |
| Better performance with new engine. Enjoy trouble free, tension free rides as far as youd like to go. |
| General information |
|---|

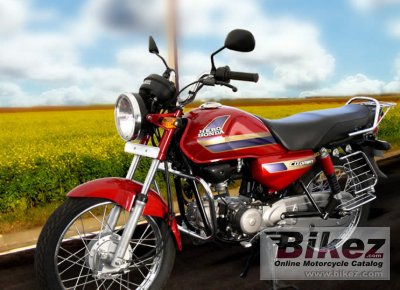

| Model: | Hero Honda CD-Dawn 100 |
| Year: | 2010 |
| Category: | Sport |
| Rating: | 3.1 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 97.2 ccm (5.93 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 7.8 HP (5.7 kW)) @ 7500 RPM |
| Torque: | 8.0 Nm (0.8 kgf-m or 5.9 ft.lbs) @ 4500 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 50.0 x 49.5 mm (2.0 x 1.9 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular double cradle |
| Front suspension: | Telescopic hydraulic shock absorber |
| Rear suspension: | Swing arm with hydraulic shock absorber |
| Front tyre: | 2.75-18 |
| Rear tyre: | 2.75-18 |
| Front brakes: | Expanding brake (drum brake) |
| Diameter: | 130 mm (5.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Diameter: | 110 mm (4.3 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 107.0 kg (235.9 pounds) |
| Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height: | 1045 mm (41.1 inches) |
| Overall length: | 1965 mm (77.4 inches) |
| Overall width: | 720 mm (28.3 inches) |
| Ground clearance: | 165 mm (6.5 inches) |
| Wheelbase: | 1235 mm (48.6 inches) |
| Fuel capacity: | 10.50 litres (2.77 gallons) |
| Reserve fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications |
|---|
| Color options: | Black, white, red |
| Starter: | Kick |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 10 Hero Honda CD-Dawn 100 discussion group or the general Hero Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Hero Honda bike
|
Design and look for the 2010 Hero Honda CD-Dawn 100:
 (56.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
